Spark emission spectroscopy (OES)

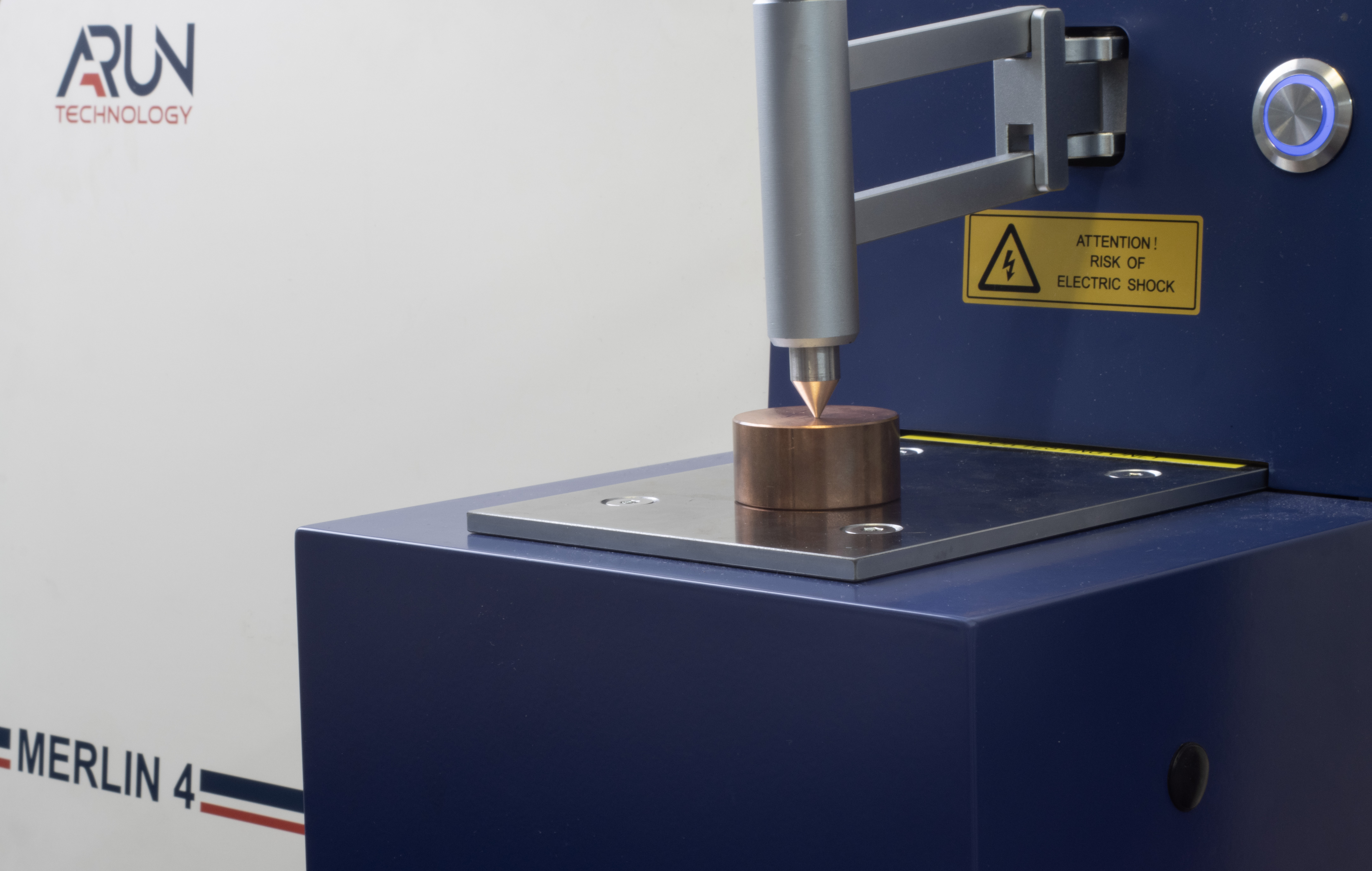

Model MERLIN 4 - CMOS Spectrometer (OES)

Arun Technology's Model MERLIN 4 is a mid-range CMOS spectrometer, available as a single-base unit or as a flexible multi-base system. It is ideal for metal production and machining industries, test laboratories and marine applications. It is available in two versions; MERLIN 4 Ultra (175-521 nm) and MERLIN 4 Visible (205-521 nm), covering the majority of calibration elements.

Main features

Detection technology: high resolution CMOS.
Spectral range: Ultra 175-521 nm, Visible 205-521 nm
Optical system: Sealed, pressure & temperature stable, self-cleaning to avoid moisture
Libraries: Extensive grade databases and QC function for efficient control
Calibration: Customized for a variety of bases and alloys
Uses: Incoming materials control, production process testing, final quality control
Applications: Metal production & processing, inspection laboratories, shipping

TECHNICAL SPECIFICATIONS

Model ARTUS 8 - High performance OES (CMOS) spectrometer

Arun Technology's ARTUS 8 model offers fast, accurate and reliable analyses for excellent metal melting control. It is one of the most powerful and reliable spectrometers, with a full range of analytical programs for cast irons, carbon and nitrogen steels, as well as all alloy elements and their traces. The flexible CMOS design makes it suitable even for applications normally covered by photomultiplier systems.

Main features

Detection technology: high resolution CMOS
Optical system: Dual, capable of detecting elements in the far UV (P, Na, Li)
Lowest detection limits: Down to the smallest trace elements
Calibration: Personalized for a variety of bases and alloys
Analytical programs: Cast irons, steels with C & N, alloys with all major and trace elements
Applications: Metal industry, melt quality control, high precision laboratories

TECHNICAL SPECIFICATIONS

Model ARTUS 10 - Innovative OES Spectrometer (CMOS)

Arun Technology's ARTUS 10 model features a scientific-grade CMOS sensor, offering analysis times of up to 10 seconds for some metals. Advanced algorithms eliminate background interference, ensuring high accuracy and optimal performance. Its environmentally stable design, combined with the dual optical system, make it ideal for continuous, high-productivity operation.

Main features

Detection technology: scientific-grade CMOS
Resolution time: up to 10 seconds for some metals
Algorithms: Background noise elimination for clean spectrum
Optical system: Dual, environmentally stable chamber
Design: gas flow channels, cast aluminium light chamber
Maintenance: Tool-free access to UV and visible spectrum lenses
Electrode: "clasping type" clamping system.
Calibration: Personalized for different bases and alloys
Libraries: Extensive grade databases and QC capabilities via software
Applications: High precision and high speed metal analysis, industry, quality control laboratories.

TECHNICAL SPECIFICATIONS
