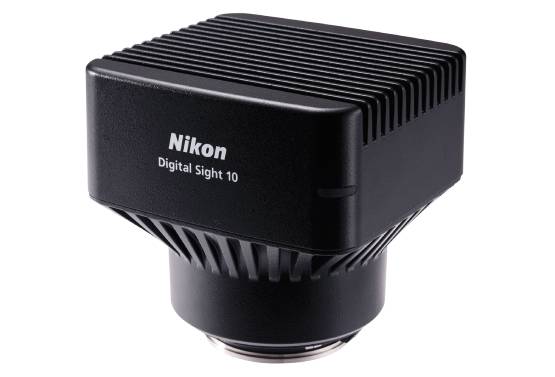

Microscope Camera DIGITAL SIGHT 10
Digital Sight 10 is a high definition camera for capturing both colour and monochrome images without loss of quality across a full range of observation modes. The Digital Sight 10 utilises a full frame Nikon FX 23.9 megapixel CMOS sensor to provide outstanding image quality in both colour and monochrome modes, without loss of quality or resolution.
Image Sensor | Nikon FX-format, Color/Monochrome CMOS sensor / Size: 35.8×23.8mm |
Recordable Pixels | 6000×3984 pixel |
ISO sensitivity (recommended exposure index) | Color mode: equivalent to ISO200, Monochrome mode: equivalent to ISO800 (Selectable from ISO200 to ISO12800 equivalent) |
Live Display Mode | Full-pixel 6000×3984 pixel (max 9fps) / 3×3 pixel averaging 2000×1328 (max 55fps) |
Lens Mount | F mount |
Exposure Time | 100 μsec to 120 sec |
Interface | USB3.2 GEN1,2 (computer control connection) ×1, External sync input/output ×1 |
Power Supply | AC100-240V 50/60Hz |
Power Consumption | 18W |
Dimensions | 113 (W) × 108 (D) × 110 (H) mm |
Weight | 1100g |
Operating Environment | 0-40°C, 60% RH max. (without condensation) |

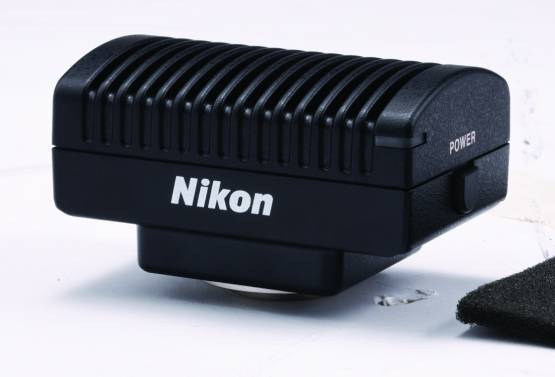

Microscope Camera DS-Fi3
With high speed data readout, superior colour reproduction and high quantum efficiency, the DS-Fi3 camera is optimised for imaging using contrast methods such as brightfield, darkfield, differential interference contrast (DIC) and polarisation contrast (POL) to suit a wide range of applications .
Nikon’s DS-Fi3 compact, high-definition, high-speed, high-sensitivity C-mount camera is equipped with a 5.9 megapixel CMOS image sensor, enabling the capture of images with incredible definition up to 2880×2048 pixels. The CMOS sensor with high-speed USB3.0 data transfer facilitates fast focusing and efficient image acquisition when using a range of contrast techniques.
Image Sensor | 1/1.8 inch Color CMOS image sensor, Size: 6.91 x 4.92 mm |
Recordable Pixels | All pixels: 2880 x 2048, 2 vertical and 2 horizontal pixels average: 1440 x 1024 |
Lens Mount | C-mount |
ISO Sensitivity (recommended exposure index) | Standard: equivalent to ISO 50 (Selectable from ISO 50 to ISO 3200 equivalent) |
Live Display Mode* (Maximum fps) | All pixels (2880 x 2048): 15 fps, 2 vertical and 2 horizontal pixels average: 30 fps, (1440 x 1024): 30 fps |
Exposure Time | 100μ sec to 30 sec |
Photometry Mode | Average photometry: Average intensity within the photometry area, Peak photometry: Maximum intensity within the photometry area |
Exposure Control | One-time automatic exposure: Exposure time is adjusted automatically for one-time within the optimum range for the camera. Continuous automatic exposure: Automatic exposure adjustment is performed continuously to keep the exposure within the camera. Manual exposure: Exposure time and gain settings are made manually |
Exposure Correction | Average metering: ±1EV, Step: 1/6EV, Peak hold metering: -1EV to ±0EV |
Interface | USB3.0 (connect with PC, DS-L4) x1, External trigger x1 |
Power Supply | AC100-240V 50Hz/60Hz |
Power Consumption | 4.8W |
Dimensions | 100 (W) x 66 (D) x 65 (H) mm |
Weight | 400g (approx.) |
Operating Environment | 0-40°C , 60% RH max. (without condensation) |

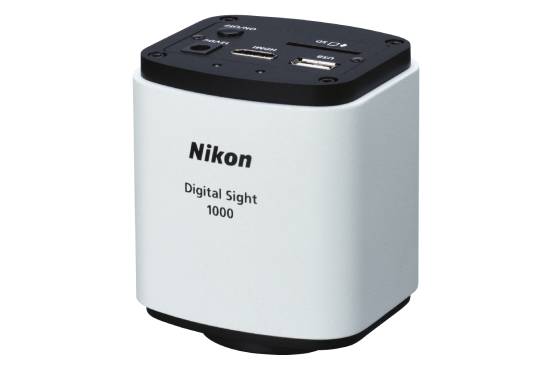

Microscope Camera DIGITAL SIGHT 1000
Equipped with a 2 megapixel CMOS sensor, the entry level Digital Sight 1000 camera displays a live image at 30fps, then captures and saves full HD 1920×1080 pixel images to the built-in SD card or via a USB connection.
The model offers easy operation by HDMI Display and SD Card Slot.
By connecting a microscope, camera and HDMI monitor, moving and still images can be captured and saved onto an SD card in the camera slot. Built-in overlay display scales and reticles are included to simplify measurements.
Image Sensor | 1/2.8-inch color CMOS image sensor, Size: 5.57 x 3.13 mm |
Recordable Pixels | 1920 x 1080 pixels |
Live Display | 1920 x 1080 pixels: 30 fps |
Exposure Time | 1msec to 10 seconds |
Lens Mount | C-mount |
Image Record Format | Standalone mode: JPEG, AVI, PC connection mode: TIFF, JPEG, AVI, MP4 |
Interface | USB2.0 (connect with PC or USB mouse) x1, for HDMI x 1, SD card slot x1 (SD/SDHC cards are usable |
Power Supply | AC100 to 240V 50Hx/60Hz |
Weight | Approx. 450 g |
Dimensions | 76 (W) x 69 (D) x 91 (H) mm |
